ColorSource Linear Fixture


ColorSource Linear


ColorSource Linear is a high-output, low profile strip light featuring the proven recipe of dual red, green, blue, and lime LEDs- the same mix as found in ColorSource PAR and ColorSource Spot. Unlike many effect-focused batten fixtures on the market, ColorSource Linear is designed for high-quality, high-output theatre-grade stage lighting.

Like the other fixtures in the ColorSource family, ColorSource Linear shines with brighter, richer, and more diverse colors than you’ll get with RGB fixtures. With its single-row LED array, this low profile fixture can be quietly tucked away into hard to fit spaces. The optics were designed so there is no visible separation in light when the fixtures are lined up end to end. This slender design and seamless beam of light make it a perfect fixture for dance shows with small wing space, cafeteria stages with limited masking, and foot lights for any stage.

Available in 0.5 meter, 1 meter, and 2 meter lengths, ColorSource Linear enables multiple fixtures to be mounted end to end with even spacing of their homogenized optics.

ColorSource Original/Deep Blue arrays (Red/Green/Blue/Lime) or Pearl (Warm white/cool white).

ColorSource Pearl is a variable white light LED fixture array comprised of a mix of white LEDs. This enables a user to set the color temperature and output brilliant whites anywhere between 2700 K and 6500 K.

Ships With: ColorSource Linear luminaires ship with trunnions and UL1573 powerCON cable with connector of choice.

Additional information

Weight 7.9 lbs
Dimensions 36 × 6 × 6 in
Connector Leads

L520 Twistlock, Bare Ends, Edison, Stage Pin

Fixture Color

Black, Silver, White

Fixture Length

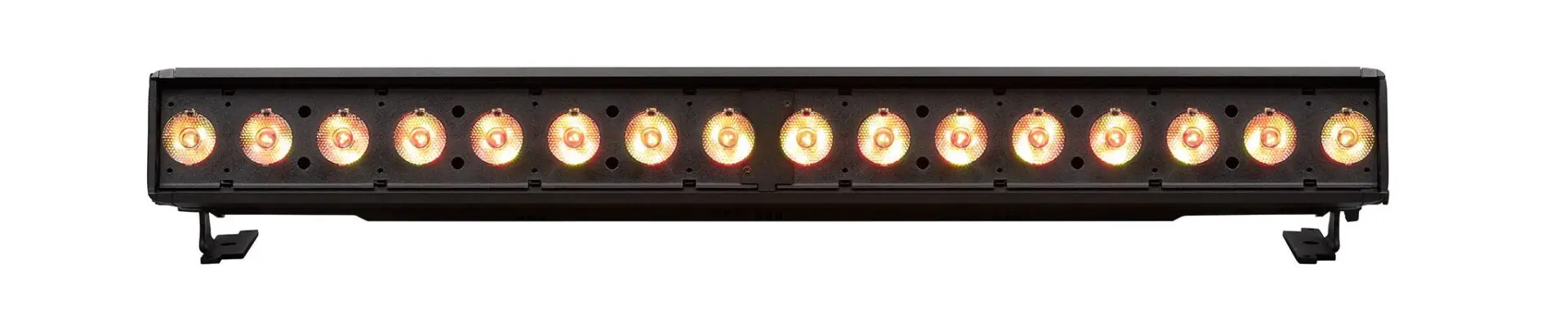

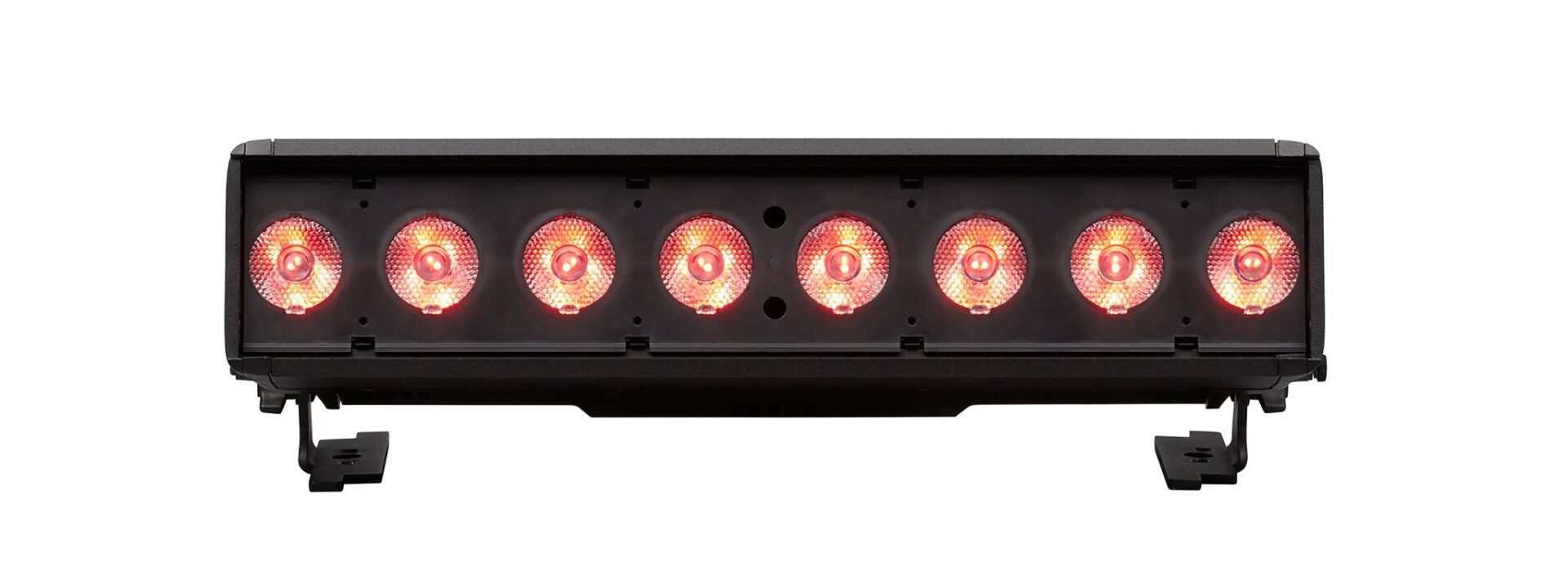

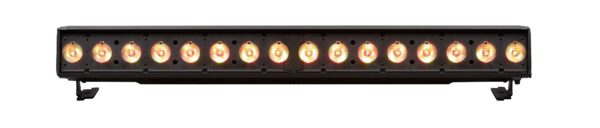

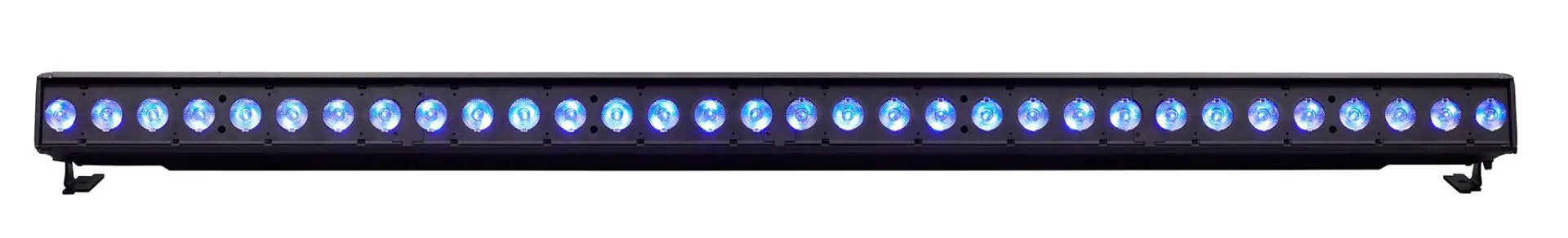

Linear 1 – 0.5m, Linear 2 – 1m, Linear 4 – 2m

LED Array

ColorSource Deep Blue, ColorSource Original, ColorSource Pearl
