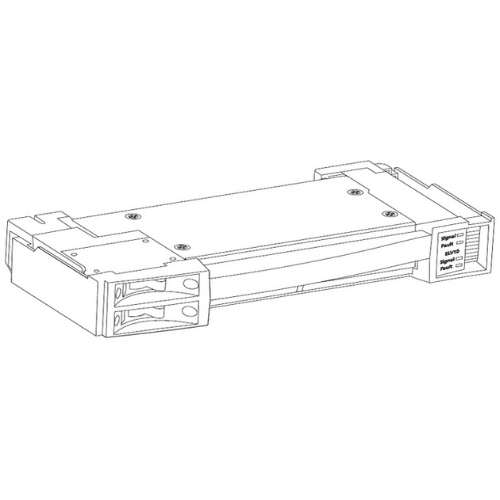

Dual 10A Electronic Reverse Phase Module

Dual 10A Electronic Reverse Phase Module

$665.00

Dual 10A Electronic Reverse Phase Module

SKU: ELV10-S Category:

Description

The Electronic Reverse Phase Control Dimmer Module is a dual, plugin dimmer for use in Sensor?3 dimmer rack enclosures. The Electronic
Reverse Phase Control Module provides cost effective reverse phase
angle dimming of electronic transformer circuits. The design features
high-density modular assembly, fully magnetic and fully rated circuit
breakers, and electronic low-end set controls via control module.
APPLICATIONS
? Electronic low voltage transformers
? Electronic LED power supplies requiring reverse phase control
FEATURES
? Two 1.2kW dimmers per module
? High-density modular assembly
? Die-cast aluminum chassis
? Fully magnetic circuit breaker
? Electronic low-end set controls
GENERAL
? 100,000A Short Circuit Current Rating (SCCR)
? UL and cUL LISTED

Additional information

Weight 2.5 lbs
