Description

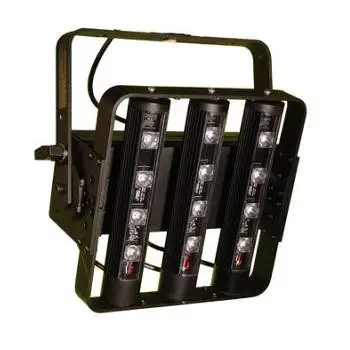

The Spectra Series UV30 is a 30-watt blacklight fixture built for professional stage and theatrical use. It uses high-performance, long-life 365nm UV-A LED emitters to deliver strong, consistent UV output while producing far less visible spill light than traditional fluorescent blacklights. Inside the housing, three independent LED cells run on separate DMX channels, giving lighting designers precise, individual control over intensity and effect. Each cell can be focused independently, and the interchangeable yoke lets you mount the fixture in either vertical or horizontal orientation to fit the rig. Rated cETLus and IP20, this blacklight fixture is built for indoor use only and is proudly made in the USA.
Key Features Of 30W Blacklight 365nm UV LED
- 365nm UV-A LED emitters: High-performance, long-life LEDs for consistent, low-visible-light UV output.
- Three independently controlled LED cells: Each on its own DMX channel for granular intensity control.
- Individually focusable cells: Fine-tune beam spread and coverage per cell.
- Interchangeable yoke: Switch between vertical and horizontal alignment to suit the mounting position.
- Feed-through power and data: Simplifies daisy-chaining multiple fixtures in a rig.
- 10° or 30° lens options: Select the beam angle at the time of order (lenses are not field-changeable).
- Selectable 8-bit and 16-bit personalities: Flexible control resolution for different DMX consoles.
- On-board multi-voltage power supply: 100 – 240VAC, 50/60Hz, for use worldwide.
- DMX and RDM compatible: Integrates with standard lighting control systems.
- Push-button programming: Quick address and mode setup at the fixture.
- cETLus listed, IP20 rated: Certified for indoor use only.
- Weight: 16 lbs (7.3 kg): Manageable for rigging and repositioning.
How To Use The 30W LED Blacklight Fixture
- Choose your lens at order time. Select either the 10° or 30° lens option before purchasing — lenses are not field-changeable, so confirm your beam angle needs (tight focus vs. wide wash) in advance.
- Mount and orient the fixture. Use the interchangeable yoke to position the blacklight fixture vertically or horizontally, depending on your rig and the coverage area you need.
- Connect power and data. Plug into the on-board multi-voltage power supply (100–240VAC, 50/60Hz) and connect DMX in/out using the feed-through ports to link multiple fixtures on the same run.
- Set the DMX address. Use the push-button programming interface to assign a DMX address and select 8-bit or 16-bit personality based on your console’s control needs.
- Focus each LED cell. Adjust the three independently focusable cells to shape the UV output across your target area.
- Control intensity via DMX. Since each of the three 365nm UV led cells sits on its own DMX channel, program your console to fade or layer intensity across channels for the desired effect.
- Use indoors only. This fixture is IP20 rated and cETLus listed for indoor use only do not install it in outdoor or wet-location environments.
