DMX to DALI converter (DMX controller, DALI ballasts)





The DMX2DALI interface has an opto-isolated DMX512 input and two DALI output ports. Each output port is capable of individually addressing 64 DALI devices. There are modes to allow for single channel control of all ballasts (broadcast mode), stand alone operation, and a simple fixture addressing facility.

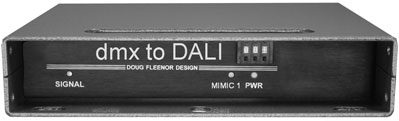

The DMX512 input is received via three-position two-part terminal block connector. The DALI protocol is output via three-position two-part terminal block connector. LED indicators display DMX input signal, power and a Mimic of channel one. A three-digit thumbwheel switch is provided to set the starting address. A test feature allows bringing any output to full by setting the front panel switch to 601 – 728.

Available connector types: 5 pin XLR, 3 pin XLR, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosure.

Additional information

Weight 5 lbs
Dimensions 24 × 12 × 6 in
