ETCnomad Puck Lighting Controller Kit


ETCnomad Puck Lighting Controller Kit



ETCnomad Puck
All the advantages of PC control. None of the risk.
Enjoy the concept of PC-based lighting control, but worry about the risk? Don’t want your laptop to walk away from a venue? Concerned that someone on your crew would try to play video games or browse the Internet when they should be programming?

Then you need ETCnomad Puck.

This ETC-provided and supported mini-computer is locked down, so no software other than ETC applications can be installed, giving you peace of mind that your device is safe, secure and used only for your shows. ETCnomad Puck also makes a very cost-effective, highly portable Remote Video Interface.

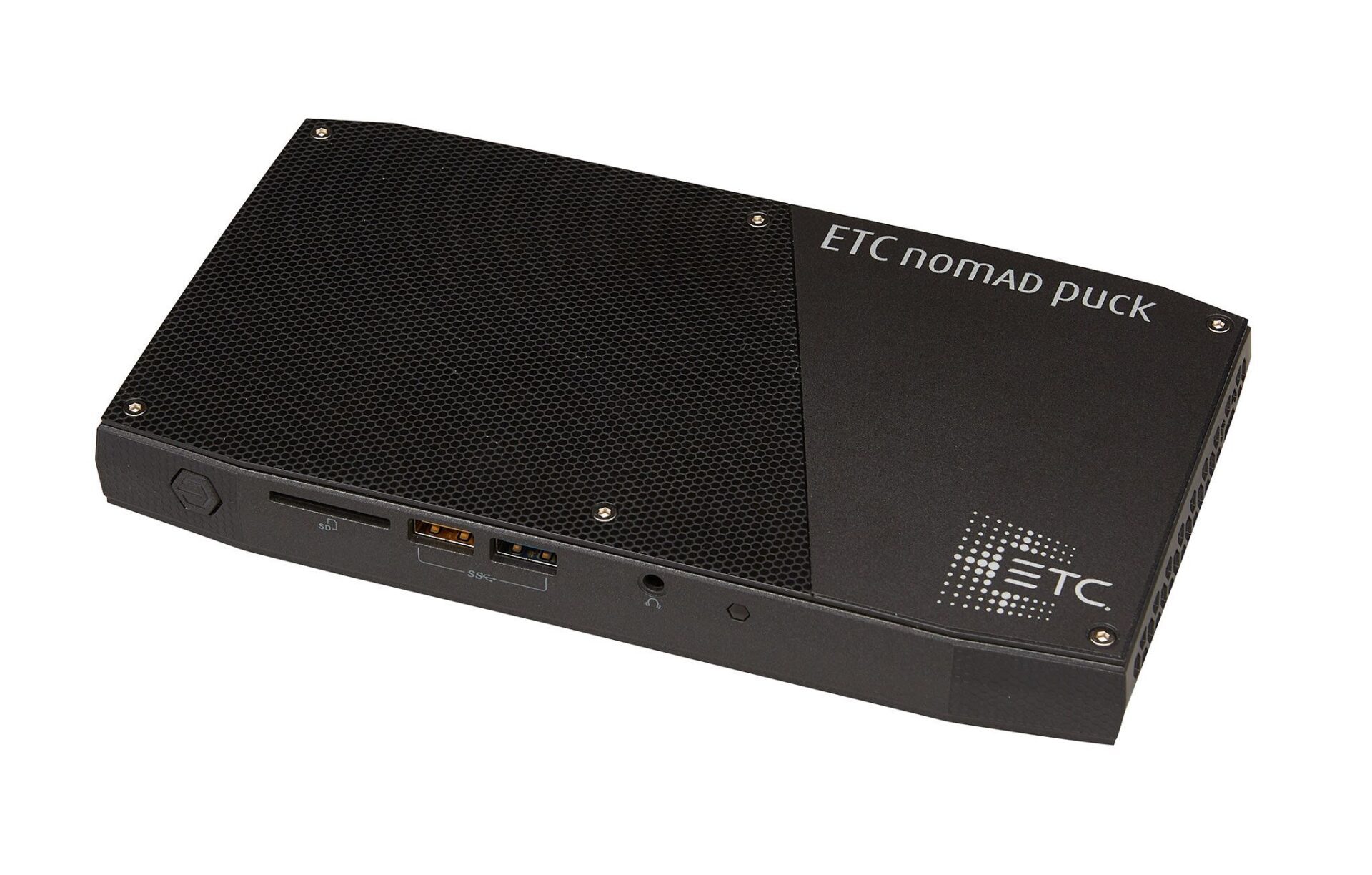

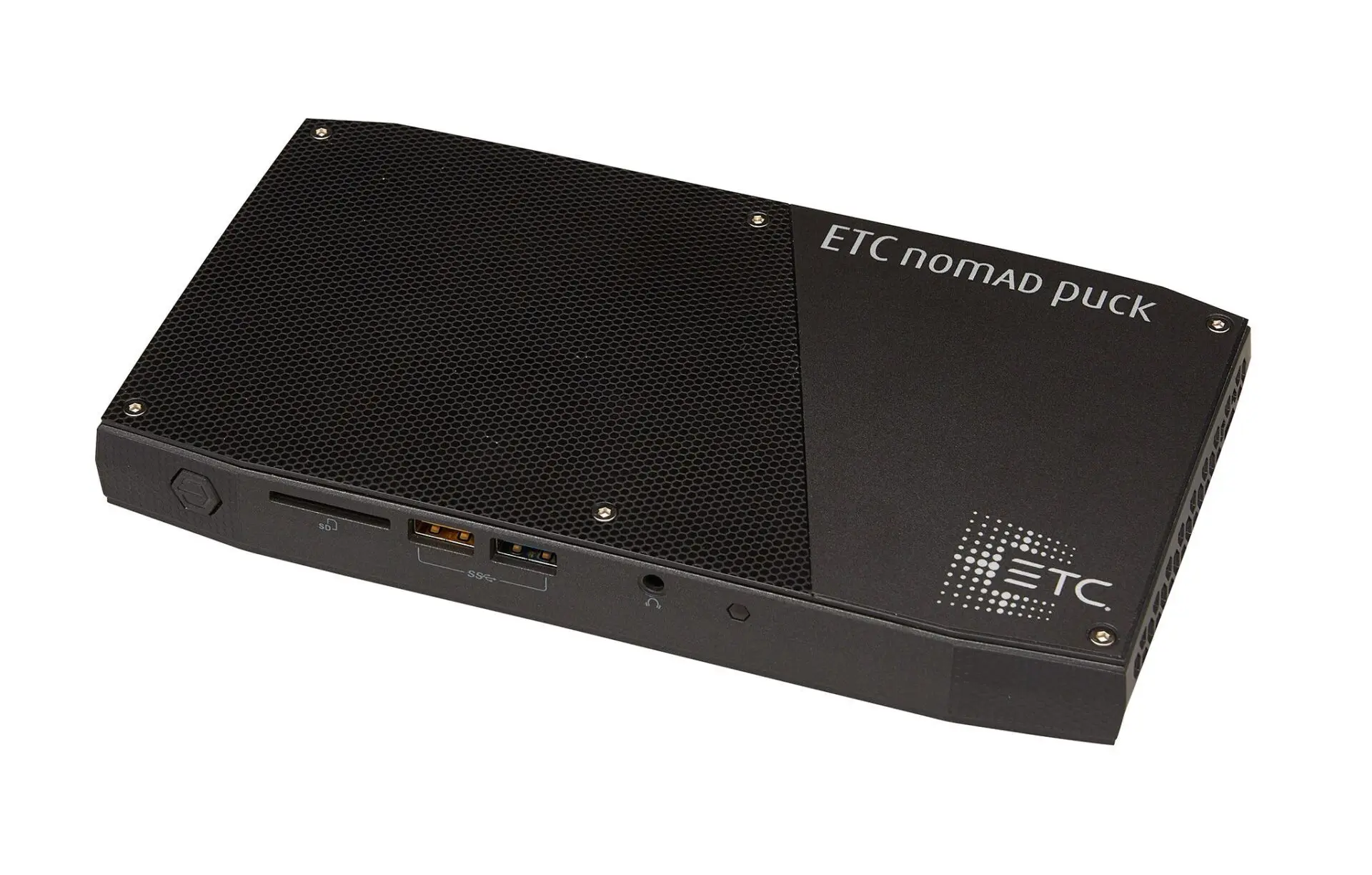

A small but powerful control device, Puck has one HDMI video port (DVI adapters can be used if needed), one Mini Display Port (Mini DP to HDMI adaptor included), one network port and four USB ports. This is a Windows 7 unit; as such, multi-touch displays are supported.

A hat trick of control. ETCnomad Puck can serve as a primary, backup or client device, and it can also work offline.

ETCnomad Puck is available in two output counts:
ETCnomad Puck base (512 outputs with software version 2.8.3 or earlier, 1024 with version 2.9 or higher)
ETCnomad Puck unlocked (6144 outputs)
Supported protocols include Net3/ACN/sACN and Art-Net
Note that Net2 protocol is not supported.
Net3/Response DMX/RDM Gateways
Net3 Show Control Gateway and I/O Gateway
Response MIDI and SMPTE Gateways
Eos Programming Wing
Eos Motorized Fader Wing 10 or 20
Eos Fader Wing 20 or 40
ETC Gadget II USB-to-DMX/RDM converter (up to four may be connected for a total of four local outputs)
iRFR, iRFR Preview and aRFR
ETCpad (ETC Portable Access Device)
Third-party USB-MIDI panels via Direct MIDI

When you use ETCnomad Puck as a primary or backup, the system output is determined by the device with the lowest output configuration. When it’s connected as a client, ETCnomad Puck’s output capacity is ignored.

Additional information

Weight 10 lbs
Dimensions 12 × 12 × 2 in
Console Output Count

Gadget Base, Gadget Full Count
