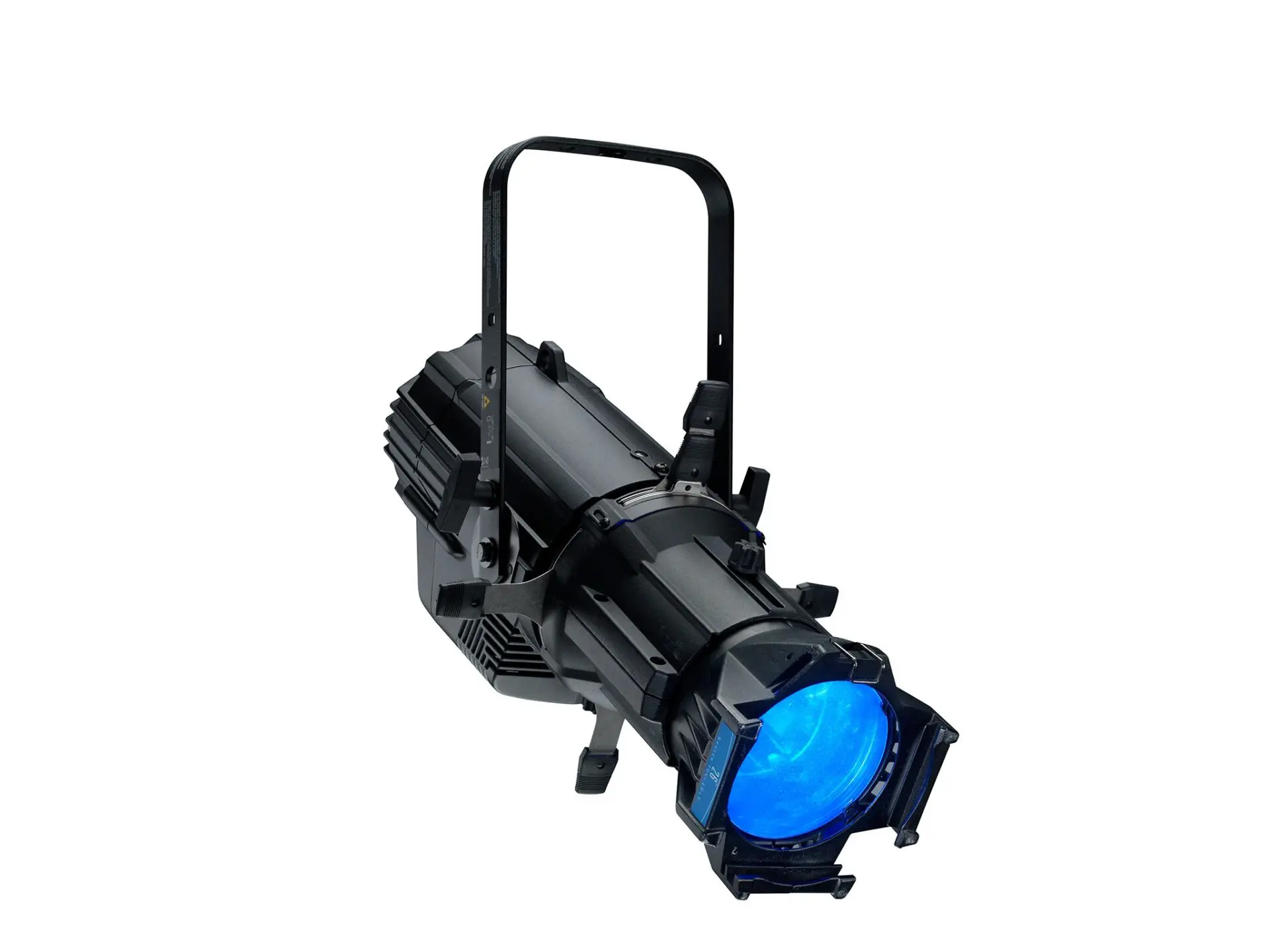

Source Four LED Series 2 Lustr- light engine with shutter barrel


Source Four LED Series 2 Lustr, light engine with shutter barrel


We put a twist of lime in the luminaire and mixed it all up. ETC’s x7 Color System combines a balanced recipe of up to seven colors to create evocative color mixes. The Source Four LED Series 2 Lustr array takes the idea even further, with the addition of a lime-green LED emitter. Lime green increases the luminaire’s lumen output in open white and lighter tints to make them brighter and livelier, better matching the color of a conventional Source Four fixture. The lime also enriches color-rendering by better marrying the red and blue ends of the color spectrum, for truer-to-life light that fills in the gaps that ordinary LEDs leave behind. We also added more red to the x7 Color System in the Source Four LED Series 2 Lustr array. Working in unison with the lime-green emitter, the extra red means the luminaire can produce ambers, straws and pinks up to three hundred percent as bright as those from the original Source Four LED. The deeper, richer color from the Source Four LED Series 2 Lustr array will evoke the strongest audience reaction to your sunset, moonlight and dramatic scenes. Product Features
60 Luxeon Rebel LED emitters
Lustr fixtures hold a 54,000-hour L70 Rating

Includes slots for glass or stainless steel patterns and soft focus diffuser
Accessory slot for motorized pattern devices or optional iris
Power and DMX in/thru connections for easy setup
Up to nine fixtures (15A max) may be linked via power thru connector (10 fixtures total per circuit) when used with R20 Relay Module or Unison Echo Relay Panel.
DMX512 in/thru via five-pin XLR connectors
Multiple control options, including RGB, strobe, and console-free Master/Slave mode
15-bit virtual dimming engine for smooth fades and minimal color shift during dimming
ETL Listed to UL1573; IP20 rated

Ships With:

Source Four LED Series 2 Light Engine (with or without standard/EDLT shutter barrel as specified), C-clamp, soft focus diffuser, A-size pattern holder, and UL1573 powerCON cable with connector of choice.

Additional information

Weight 24.8 lbs
Dimensions 24 × 12 × 12 in
Connector Leads

L520 Twistlock, Bare Ends, Edison, Stage Pin

Fixture Color

Black, Silver, White
