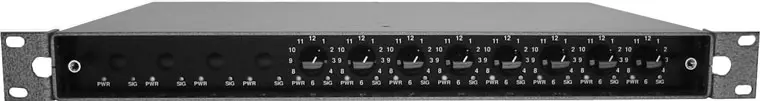

Twelve universe isolated patch bay, four inputs, eight outputs, 5 pin XLR, rack mount



SKU: DFD RR-4IN-8OUT-5 Category:


The Rotor-Router is a DMX512 distribution system featuring up to 12 inputs and an unlimited number of outputs. A system typically consists of an input module and one or more output modules. Both modules are 1.7″h x 19″w x 12″d and are normally rack mounted. A plexiglass security cover is included to prevent accidental switch changes.

NOTE: This product uses slew-rate-limited output drivers. Slew-rate-limited drivers minimize EMI and reduce reflections caused by improperly terminated cables.

Available connector types: 5 pin XLR, 3 pin XLR, or terminal block.

Additional information

Weight 12 lbs
Dimensions 24 × 12 × 6 in
