Wireless DMX receiver, 3 isolated outputs

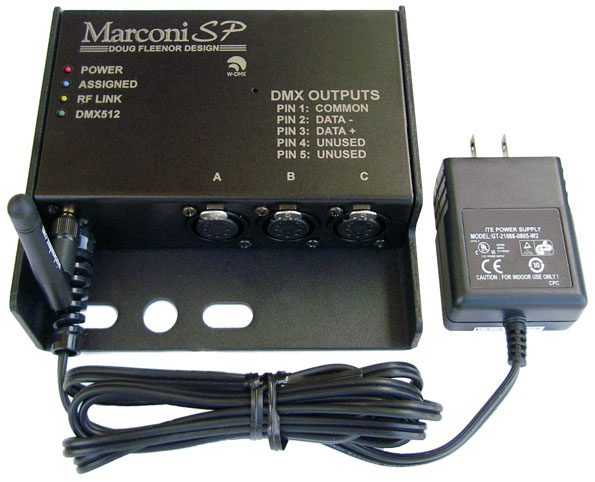

The Marconi Splitter (Marconi SP) receives all 512 channels (one universe) of DMX wirelessly through the W-DMX technology and provides three isolated DMX512 outputs. Outputs are individually isolated using 2500 volt optical couplers and 600 volt DC/DC converters.
Indicators include POWER, ASSIGNED (lights when the unit is assigned to a transmitter), RF LINK (lights when the assigned transmitter is on and within range), and DMX512 (lights when DMX512 is available at the outputs) . A 2 dB rubber whip antenna is standard. Gain antennas are available to increase reception range. The attached power supply operates from 100 to 240 volts AC.
Marconi components are 100% compatible with W-DMX products from Wireless Solution, as well as from other W-DMX partners.

Additional information

Weight 4 lbs
Dimensions 24 × 12 × 6 in
