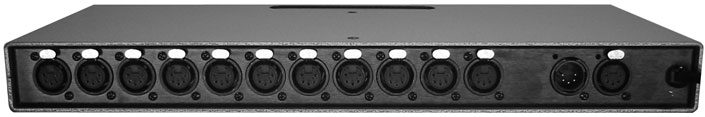

One input, eleven outputs, 5 pin XLR (standard with input feed-thru)



SKU: DFD 1211-5 Category:


The DMX512 Isolated Splitter / Amplifier is available in three standard configurations: three, five, or eleven outputs from a single DMX input. An enhanced five output splitter with protection from miswiring and lightning, and a universal power supply is also available (see model 125EE). Units with any number of inputs and outputs may be manufactured on a custom basis.

Each output is electrically isolated from the input, and every other output, by 2500 volt optical couplers. Each output has its own line driver and associated power supply.

Available connector types: 5 pin XLR, 3 pin XLR, terminal block, RJ-45 (ESTA or Color Kinetics pinout), or mounted in a JBOX enclosure. (JBOX mounted splitters are not listed with UL or ETL)
123 and 125 splitters: DIN rail mount option with terminal blocks, 5 pin XLR with feed-thru, or 3 pin XLR with feed-thru.

Additional information

Weight 9 lbs
Dimensions 24 × 12 × 6 in
