One relay, ethernet control, 120VAC input and output, 20A total connected load



SKU: DFD E1REL20A Category:

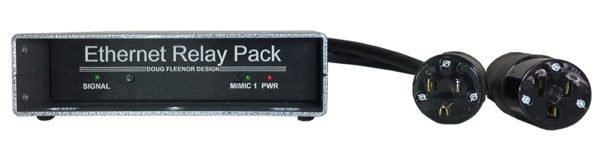

The E1REL20A uses ArtNet and sACN (E1.31) Ethernet protocols for control of a relay. The relay can switch up to a 20 amp line voltage load and is built with a 30 amp dry contact air-gap relay for robust performance. The unit is provided with two 18″ 12/3 SJ pigtails for line in and switched line out. Supplied with 15 amp parallel blade connectors as standard, the unit may be wired with higher rating connectors by special order or may be rewired by the customer.

Additional information

Weight 6 lbs
Dimensions 24 × 12 × 6 in
