Six relays, 120VAC input and output, two input power cables, 15A total connected load per input cable



SKU: DFD DMX6REL30A Category:

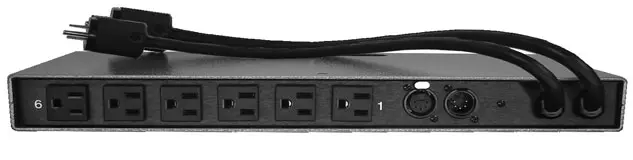

Doug Fleenor Design makes a series of relay packs that are controlled by DMX512. This six channel unit, designed to switch line voltage loads up to 15 amps, uses 30 amp relays. Line voltage input is on with two 18″ 12/3 SJ line in pigtails, one for channels 1 through 3, one for channels 4 through 6. Switched line outputs are on chassis mounted 15 amp parallel blade receptacles.

Additional information

Weight 9 lbs
Dimensions 24 × 12 × 6 in
