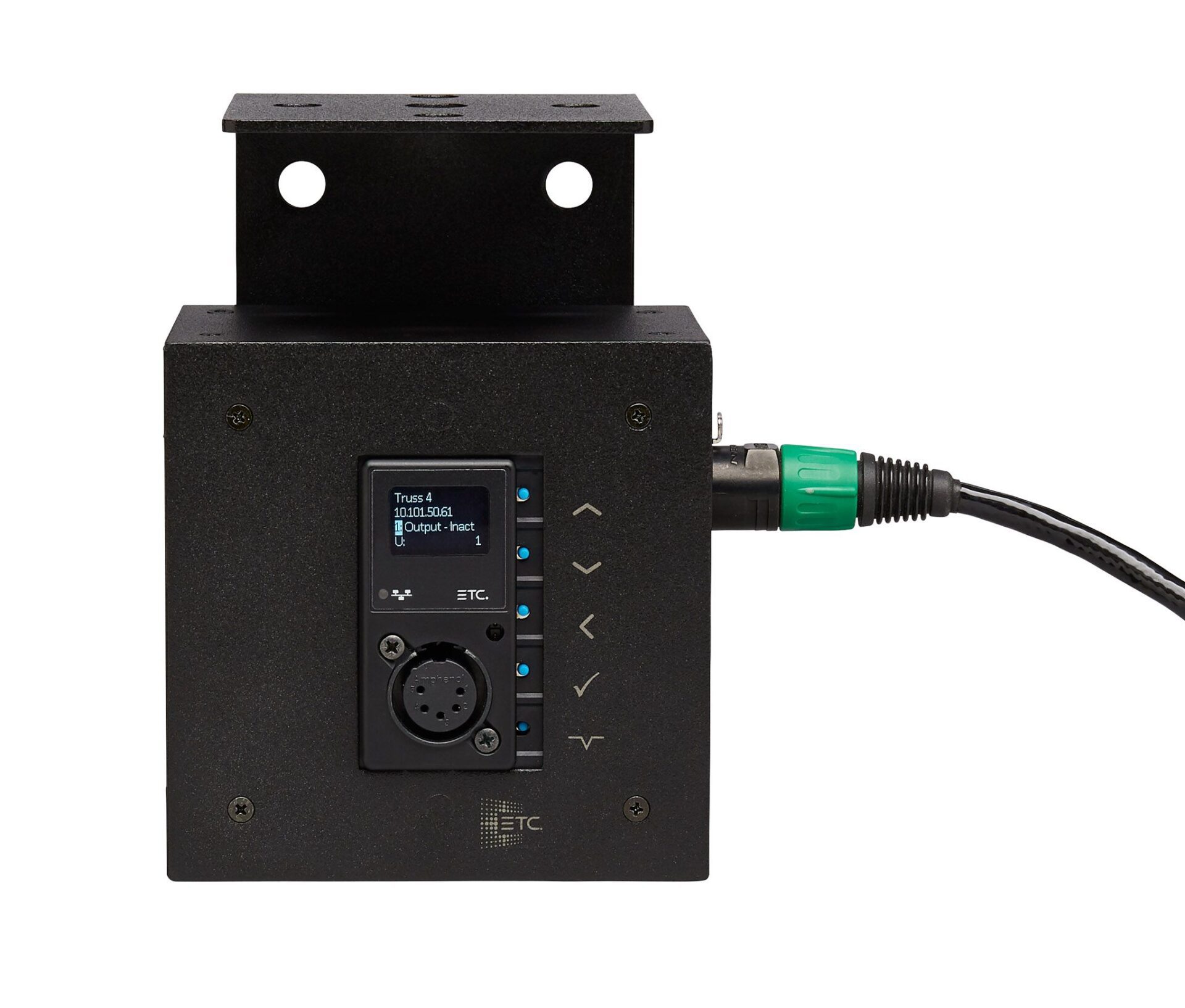

Response 1-port Portable Gateway, XLR Output, Black


Response 1-port Portable Gateway, XLR Output, Black

SKU: RSN-DMX1-O-P-4 Category:


Response Mk2 DMX Gateways provide DMX and RDM data distribution, taking advantage of the reliability and interoperability of industry-standard protocols such as ANSI E1.31 (sACN) and ANSI E1.20 (RDM) using standard Ethernet cabling and infrastructure. The Gateways are available in 1-, 2-, and 4-port models to support multiple DMX universes. Each Gateway supports 256 RDM devices.

The 1-Port and 2-Port wall-mount models offer faceplates in Cream, Gray, Black, or White to blend in with any environment. And with portable form factors for each model it is possible to use accessories such as rack-mounting trays and c-clamp accessories.

Local and remote configuration Every model ? even the 1-port! ? features a crisp OLED screen and four-button interface for configuration, status, and diagnostics right at the Gateway itself.

For larger systems, Response Mk2 DMX Gateways are configurable using ETC?s Concert software. Both network parameters and DMX/RDM configurations can be modified, saved, and re-loaded, allowing for maximum flexibility. On-board diagnostics and output tests make Response Mk2 Gateways a great tool for technicians.

Fully-integrated ETC systems
Response Mk2 DMX Gateways offer seamless integration into ETC?s Unison architectural lighting control systems, and also pair perfectly with ETC?s entertainment controls.

Finding the right Ethernet gateway has never been easier. With wall-mount, portable, and DIN rail form factors, you can always find the perfect fit for your application. And ETC’s variety of DIN rail enclosures ensure you have a secure, convenient place to house your DIN rail devices. All Gateways can be powered via Power over Ethernet or 12-24 VDC external power supply.

All models feature:
10/100 Mbps Ethernet connection
sACN (ANSI E1.31) Support (up to eight sources per port)
DMX/RDM (ANSI E1.20) Support
OLED Screen and local UI
cETLus Listed / CE compliant / EAC certified
PoE (IEEE 802.3af) or 12-24 VDC external power supply (available separately)

Additional information

Weight 3.8 lbs
Dimensions 8 × 8 × 2 in
